Development

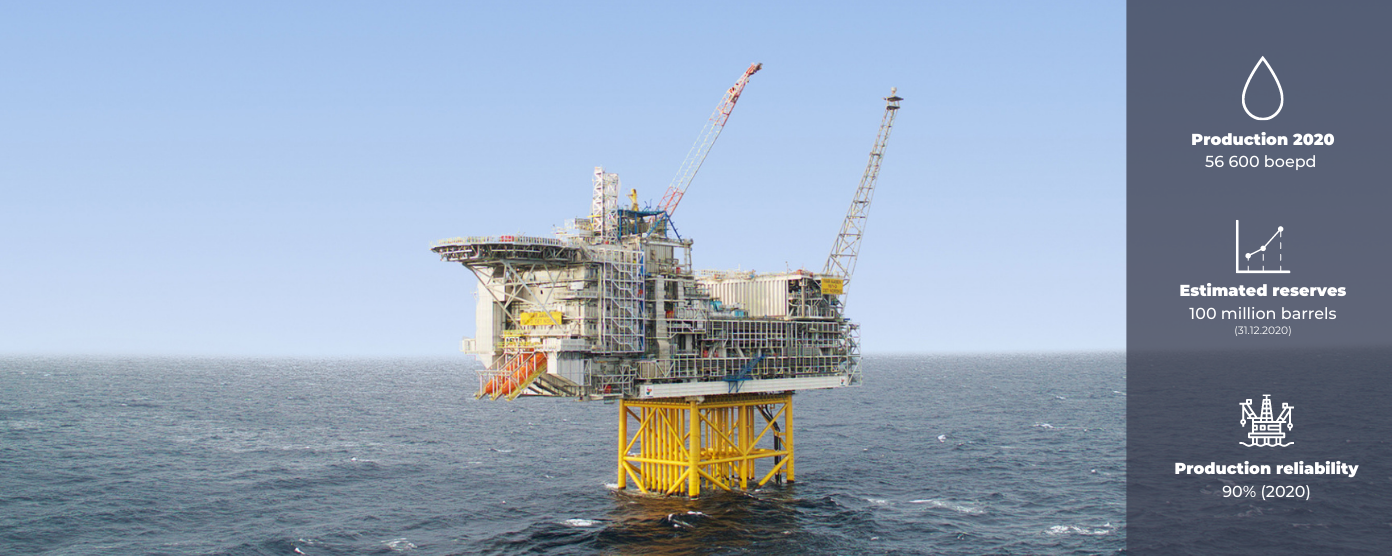

The development comprises a production, drilling and quarters (PDQ) platform with a steel jacket and a separate jack-up rig for drilling and completion. The platform is equipped for tie-in of a subsea template planned for the development of the Hanz field, and for possible development of other nearby discoveries. First stage processing is carried out on the Ivar Aasen platform, and the partly processed fluids are transported to the Edvard Grieg platform for final processing and export.
Reservoir
Ivar Aasen produces oil from sandstone reservoirs. The field consists of the discoveries 16/1-9 Ivar Aasen and 16/1-7 (West Cable). The 16/1-9 Ivar Aasen reservoir consists of fluvial sandstone of Late Triassic to Middle Jurassic age in the Skagerrak and Sleipner Formations and shallow marine sandstone in the Middle Jurassic Hugin Formation. The reservoir lies at a depth of 2,400 metres. It is compartmentalised and has moderate to good quality. Parts of the reservoir have an overlying gas cap. The reservoir in 16/1-7 (West Cable) is in fluvial sandstone in the Middle Jurassic Sleipner Formation. It lies at a depth of 2,950 metres and has moderate quality.
Recovery
16/1-9 Ivar Aasen is produced by pressure support from water injection. 16/1-7 (West Cable) is produced by pressure support from an aquifer.
Transport
Oil and gas are transported to the Edvard Grieg platform for final processing. The oil is exported by pipeline to the Grane Oil Pipeline, which is connected to the Sture terminal. The gas is exported in a separate pipeline to the Scottish Area Gas Evacuation (SAGE) system in the UK for further processing at the St Fergus terminal.
Status
Read more about Ivar Aasen on Norwegian Petroleum's website.
